DMM1604

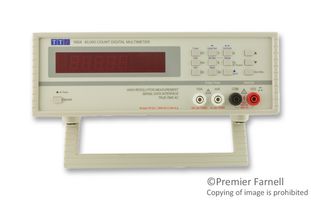

The 1604 is a low-cost auto/manual ranging bench-top DMM with a large and bright LED display. It offers 4¾ digit (40,000 count) scale length, true RMS ac measurements, a basic accuracy of 0.08% and a resolution of 10µV, 10mOhms and 0.1µA. The 1604 incorporates several "smart" functions such as Relative measurement and Minimum-Maximum storage. The T-Hold function enables readings to be held on the display automatically each time a new test point is probed.

• 40,000 count, auto/manual ranging
• Basic d.c. V accuracy 0.08%
• Resolution 10µV, 10mohm, 0.1µA
• Large bright LED display (14mm/0.56")
• Current measurement up to 10 amps
• True RMS as functions, wide ac bandwidth
• Frequency measurement function
• Relative, T-Hold and Min-Max functions
• Isolated RS232 interface as standard
• Safety EN6101-1, EMC 50081-1, EN50082-1

Applications

Industrial, Maintenance & Repair, Test & Measurement

Notes

In addition, we have calibration services for this product (Europe Only). Visit our calibration service page to see details of what options are available.
