L202-3080033C30001

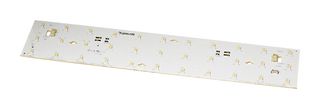

LED Module, LUXEON XR-3535L, Board + LED + Connector, White, 3000 K, 1403 lm
Image is for illustrative purposes only. Please refer to product description.
ManufacturerLUMILEDS
Manufacturer Part NoL202-3080033C30001
Order Code2834414
Product RangeLUXEON XR-3535L
Technical Datasheet
35 In Stock
Need more?
1-2 Working Days Delivery
Order before 17:00 standard shipping
Available until stock is exhausted
| Quantity | Price (ex VAT) |
|---|---|
| 1+ | zł69.800 |
| 5+ | zł68.410 |
| 10+ | zł67.010 |
Price for:Each
Minimum: 1
Multiple: 1
zł69.80 (ex VAT)
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerLUMILEDS
Manufacturer Part NoL202-3080033C30001
Order Code2834414
Product RangeLUXEON XR-3535L
Technical Datasheet
Product RangeLUXEON XR-3535L
LED Module TypeBoard + LED + Connector
LED ColourWhite
CCT3000K
Luminous Flux @ Test1403lm
Luminous Flux @ Max-
Power Rating-
Supply Voltage-
Forward Current @ Test300mA
Power Module ConfigurationLinear
Operating Temperature Min-40°C
Operating Temperature Max85°C
Product Overview
LUXEON XR-3535L series LED module optimized for lighting applications requiring LED linear array mounted on a rigid and thermally conductive substrate.
- 1320lumen offerings enabling efficiency to 142lm/W
- 3000K CCT with 80 CRI minimum
- 33 LEDs
- Super CEM3 PCB rigid substrate for mechanical robustness and efficient heat dissipation
- Two electrical connector options with snap-together or pushbutton terminal blocks
- Zhaga certified mechanical design for easy mounting and assembly
- UL-recognized component [E335118]
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Technical Specifications
Product Range
LUXEON XR-3535L
LED Colour
White
Luminous Flux @ Test
1403lm
Power Rating
-
Forward Current @ Test
300mA
Operating Temperature Min
-40°C
LED Module Type
Board + LED + Connector
CCT
3000K
Luminous Flux @ Max
-
Supply Voltage
-
Power Module Configuration
Linear
Operating Temperature Max
85°C
Technical Docs (2)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:United States
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:United States
Country in which last significant manufacturing process was carried out
Tariff No:94059900
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:To be advised
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.025
