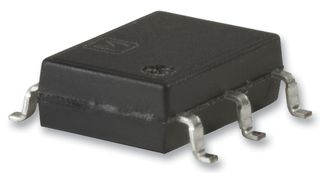

AQV212S
MOSFET Relay, 60 V, 500 mA, 2.5 ohm, SPST-NO
Need more?
| Quantity | Price (ex VAT) |
|---|---|
| 1+ | zł11.770 |
| 5+ | zł11.140 |
| 10+ | zł10.470 |
| 20+ | zł10.250 |
| 50+ | zł10.000 |
Product Information
Product Overview
The AQV212S is a Solid State Relay with SPST-NO contact and surface-mount terminals. This AQV-series PhotoMOS GU 1-form-A relay feature extremely low closed-circuit offset voltage to enable control of low-level analogue signals without distortion. Eliminates the need for a counter electromotive force protection diode in the drive circuits on the input side. Controls various types of loads such as relays, motors, lamps and solenoids.
- Controls low-level analogue signals
- Stable on resistance
- Low-level off state leakage current
- 550mW Power dissipation
- 2ms Turn-on and 0.2ms turn-off maximum time
- -40 to 85°C Operating temperature range
Applications
Communications & Networking, Computers & Computer Peripherals, Test & Measurement, Motor Drive & Control
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Technical Specifications
SPST-NO (1 Form A)
AC / DC
500mA
Surface Mount
700µA
1.5kV
1µA
No SVHC (23-Jan-2024)
SPST-NO
60V
SOP-6
Gull Wing
2.5ohm
0.8pF
PhotoMOS AQV21
