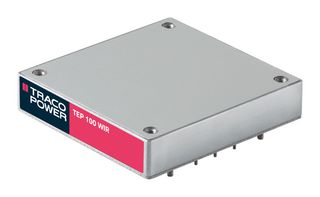

TEP 100-2411WIR

TEP 100WIR series is a family of isolated high performance DC/DC converter modules which come in a rugged, sealed industry standard half brick package. A very high efficiency allows full power operation without forced air cooling at 60°C This temperature can be increased to 70°C with optional mounted heatsink or up to 85°C when mounted on an iron base plate. The very wide input voltage range make these converters interesting solution for battery operated systems. Typical applications are in telecom/datacom, industry control and railway systems for on board power distribution. These series is available in many optional designs on demand. It complies with EN 60950-1, EN 62368-1, IEC 60950-1, IEC 62368-1, UL 60950-1, UL 62368-1 and EN 50155 (railway applications) safety standards.

• Compact metal package
• ultra-wide 4:1 input voltage ranges
• EN 50155 approval for railway applications
• No minimum load
• Soft start
• Adjustable output voltage +10/-20%
• Sense line, undervoltage lock-out circuit, remote on/off input
• Continuous, automatic recovery short circuit protection
• Switching frequency of 250KHz typical (PWM)
• Alu base plate with metal case
