MAX32666FTHR#

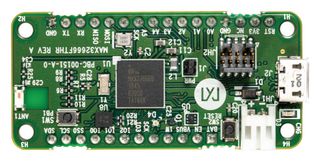

MAX32666FTHR# board is a rapid development platform to help engineers quickly implement battery optimized Bluetooth® 5 solutions with the MAX32666 Arm® Cortex®-M4 processor with FPU. The board also includes the MAX1555 1-Cell Li+ battery charger for battery management. The form factor is a small 0.9in by 2.0in dual-row header footprint that is compatible with breadboards and off-the-shelf peripheral expansion boards. The board also includes a variety of peripherals, such as a micro SD card connector, 6-axis accelerometer/gyro, RGB indicator LED, and pushbutton. This platform provides power-optimized flexible for quick proof-of-concepts and early software development. Typical applications include connected home, gaming devices, hearables, industrial sensors, payment/fitness/medical wearables and telemedicine.

• Zestaw ewaluacyjny do MAX32666
• Wbudowany procesor MAX32666 Arm® Cortex-M4® z FPU
• Ładowarka MAX1555 na 1 ogniwo Li+
• Złącza header kompatybilne z płytką prototypową
• 10-pinowe złącze header Cortex do debugowania
• Złącze Micro USB i złącze karty microSD
• Wskaźnik RGB, dioda LED i przycisk użytkownika
• 6-osiowy akcelerometr/żyroskop
• Antena do montażu powierzchniowego Bluetooth
• Interfejs debugowania SWD/MAXDAP
