Potrzebujesz więcej?
Ilość | Cena (bez VAT) |
---|---|
1+ | 41,740 zł |
10+ | 36,380 zł |
25+ | 33,800 zł |
Informacje o produkcie
Specyfikacja

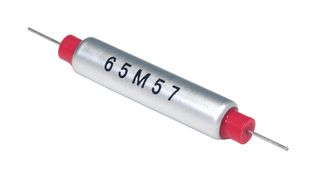

TRS3-0MCR01 is a TRS3 series thermal reed switch. It is a highly reliable, precise temperature-sensitive switch ideal for energy conservation. Its unique proprietary design features a magnet and a temperature-sensing soft ferromagnetic substance called Thermorite®. The material’s magnetic flux density decreases as the temperature increases turning it into a paramagnetic substance at the Curie temperature. Typical applications include temperature detection and overheat monitoring of electric appliances, heat-retention heater control for rice cookers, defrost for air conditioners and vending machines, roll heater temperature control for copying machines, radiator water temperature detection for automotive electric fan control.
- Maximum opening/closing power is 35W
- Operating temperature of 0°C
- Make contact type, C shape fixing bar
- Lead terminal, 100V rated voltage
- High-speed response and long operational life
- Excellent environmental durability and extremely simple circuit design
- Compact, light and easy to handle
- Dust, explosion and corrosion-proof
- Excellent temperature accuracy of ±2.5°C
Specyfikacje techniczne
0°C
typu „make"
osiowy
TRS Series
35 W AC / 10 W DC
1mA
10°C
No SVHC (21-Jan-2025)
± 2.5°C
osiowy
z wyprowadzeniami drutowymi
150mohm
140 VAC / 200 VDC
500mA
-
Dokumentacja techniczna (3)
Ustawodawstwo i kwestie dotyczące ochrony środowiska
Kraj, w którym odbył się ostatni istotny etap procesu produkcjiKraj pochodzenia:Japan
Kraj, w którym odbył się ostatni istotny etap procesu produkcji
RoHS
RoHS
Świadectwo zgodności produktu
