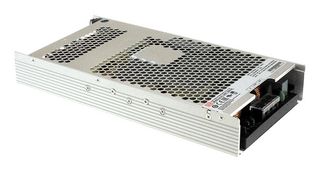

UHP-1500-24

UHP-1500 series is a 1.5kW single-output slim type power supply with 41mm of low profile design. Adopting the full range 90-264V AC input, the entire series provides an output voltage line of 24V and 48V. In addition to the high efficiency up to 96%, that the whole series operates from 30C — 70°C under air convection without fan. UHP-1500 has the complete protection functions and 5G anti-vibration capability. It is complied with the international safety regulations such as TUV EN62368-1, UL62368-1, and the design refers to EN61558-1 and EN60335-1. UHP-1 500 series serves as a high performance power supply solution for various industrial applications.

• Slim and low profile (41mm)
• Fanless and conduction-cooled design
• Built-in active PFC function
• -30 to +70’C working temperature
• Output voltage and constant current level programmable
• Protections: Short circuit / Overload / Over voltage / Over temperature
• Built-in remote ON-OFF control
• DC OK active signal
• Operating altitude up to 5km
• LED indicator for power on
• Optional PM Bus or CAN Bus protocol
• 5-years warranty
