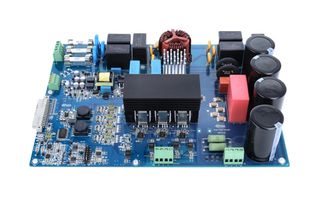

EVALM5IMZ120RSICTOBO1

EVALM5IMZ120RSICTOBO1 is a complete evaluation board including a six discrete CoolSiC™ MOSFETs realizing a B6 inverter for motor drive applications. In combination with control boards equipped with an M5 32-pin interface connector such as the XMC DriveCard 4400, the evaluation board features and demonstrates, Infineon’s CoolSiC™ MOSFETs in motor drives. The evaluation board EVAL-M5-IMZ120R-SIC was developed to support customers during their first steps designing applications with CoolSiC™. The MOSFET has a rated blocking voltage of 1200V at a typical on-state resistance of 45mΩ. It is optimized for motor drive applications with a high-frequency switching operation. The evaluation board can be as well used for other technologies (etc. IGBTs) in different voltage range (etc. 650V) in T0247 3 pin and 4 pin package.

• Input voltage 340~480VAC
• Peak 11kW motor power output
• On-board EMI filter
• Basic insulation between power and signal part
• Isolated current sensing with sigmadelta ADC & isolated sensing of DC-link voltage by sigmadelta-ADC
• Thermistor output
• Overload and short-circuit hardware protection, overtemperature hardware protection
• All six switches turn off during protection
• Rugged gate driver technology with stability against transient and negative voltage
• Auxiliary power supply with 5V
