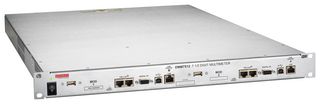

DMM7512

Keithley DMM7512 is a dual channel 7½-digit sampling multimeter that packs two independent and identical digital multimeters into a low profile 1U high, full rack width space-saving enclosure. Featuring industry leading density and performance, the DMM7512 is ideally suited for a range of demanding high-volume manufacturing test applications that require measurement capacity, performance and a compact footprint.

• Two high-precision, 7½-digit DMMs in a 1U high, full rack width chassis
• No space requirements between instruments, minimizes rack space
• Capture waveforms or identify transients with two 1 Msample/s 18-bit digitizers
• Trigger a waveform measurement on a signal level, a rising or falling edge, a window, or a digital trigger
• Store up to 27.5M timestamped readings on a waveform
• DC Voltage accuracy as low as 14 ppm
• 10 nV, 0.1 µΩ, and 1 pA sensitivities for making high resolution low level measurements
• High accuracy, low resistance measurements with offset compensated ohms, four-wire measurement, and dry circuit functions
• Auto-calibration improves accuracy and stability by minimizing temperature and time drift
• USBTMC-compliant and LAN LXI-compliant interfaces
• Reduce test time by executing test scripts with the Embedded Test Script Processor

Uwagi

In addition, we have calibration services for this product (Europe Only). Visit our calibration service page to see details of what options are available.
