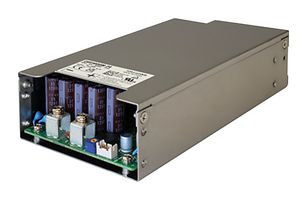

CUS800M-24

CUS800M-24 is a CUS800M series AC-DC power supply. It has medical (IEC 60601-1) and audio/video, information and communication technology equipment (IEC 62368-1) certifications. A variable speed fan, 5V/2A standby voltage, remote on/off, remote sense and a power good signal is standard. It includes overcurrent, overvoltage, overtemperature protection. Approvals are IEC/EN/UL62368-1, 60601-1 and ES60601-1.

• Medical certifications (2 x MOPP), generally required for B and BF type medical equipment
• <0.250mA leakage current, simpler system compliance, 5 years warranty
• Class B conducted and radiated EMI, easier system EMC compliance
• Compact 3.3 x 6.7 x 1.67” size, space saving in end equipment
• Variable speed cooling fan, lower audible noise, screw terminals signals: JST B8B PHDSS connectors
• Operating input voltage range from 85 to 265VAC (derate linearly to 90% load from 90 to 85)
• 24V nominal output voltage, 33.4A maximum current
• 801.6W maximum power, 92% / 94% efficiency (115 / 230VAC)
• Input frequency range from 47 to 63Hz, <0.6W at 230VAC typ no load power consumption
• Operating temperature (-25°C start-up) range from -20 to +70°C, 171 x 85 x 42.5mm size (LxWxH)
